TM AI COBOT : Collaborative Robots for Factory Automation
Automate pick and place, visual inspection, and assembly with TM Robot collaborative robots from Techman Robot. Compare models and explore the vision, tooling, and integration your production process needs.
Work with Netmarks Indonesia to discuss your application, request a showroom demo, and obtain a configuration-based quotation.
NATIVE AI ENGINE + ROBOTIC ARM + VISION SYSTEM
COBOT APPLICATIONS
Collaborative Robot Applications for Production Automation
The right cobot setup starts with your task. Part characteristics, required cycle time, workspace, and connected equipment help determine the robot and supporting components you need.
Pick and Place Automation
Transfer parts between trays, fixtures, and production stages with a cobot and suitable gripper. Configure positioning and movement around your part characteristics and cycle-time requirements.
Robotic Visual Inspection
Check component presence, read characters, and classify product features with robot vision. Select camera positioning, lighting, and inspection functions around your samples and acceptance criteria.
Assembly Automation and Part Handling
Position and transfer components during assembly with a TM cobot. Match the tooling, fixtures, and machine interfaces to your part geometry and placement requirements.
TM TECHNOLOGY

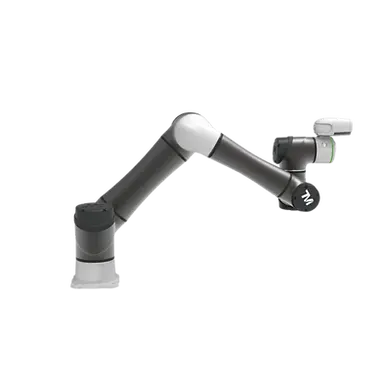

TM AI Collaborative Robot : Built-in Vision, Native AI Engine, and Robotic Arm
TM AI Cobot connects visual sensing, AI processing, and robot movement in one production workflow. On vision-equipped configurations, visual information helps locate parts, evaluate product features, and guide handling or inspection tasks.
SEE
Built-in Vision
Capture visual information to locate parts, read barcodes and characters, and check product features. Vision-equipped models bring the camera into the robot workflow.
THINK
Native AI Engine
Use trained AI models to classify images, detect objects, and identify visual anomalies. Feed the results into process logic to determine the next action.
ACT
Robotic Arm
Execute programmed movements using vision results and process logic. Pick, position, transfer, or inspect parts with tooling selected for the application.
TM TECHNOLOGY
Robot Vision for Positioning, Identification, and Inspection
TM AI Cobot combines visual sensing, AI processing, and robot movement for manufacturing automation. Use visual information to locate parts, interpret product features, and guide handling or inspection within a connected workflow.
Positioning
Eye-in-Hand
Eye-to-Hand
Upward-looking
Eye-in-Hand
Identification
Barcode/
QR code Reading
OCR
Measurement
Distance and
Angle Measurement
Caliper
Count (Edge)
AI Inspection
Image Classification
Object Detection
Semantic Segmentation
Anomaly Detection
Instance Segmentation
TM Landmark and Visual Calibration
TM Landmark updates task coordinates from a visual reference when relative positions change. The TM Calibration Board supports camera calibration for compatible eye-in-hand, eye-to-hand, and upward-looking configurations.
MORE APPLICATIONS
More TM AI Cobot Applications for Industrial Automation
Explore other production tasks that may be suitable for a TM Robot system. Each application is assessed against the process requirements and supporting equipment.
Cobot Palletizing
Discuss pallet stacking based on product weight, stacking patterns, and required reach.
Robotic Welding
Explore welding automation with suitable equipment, fixtures, process parameters, and integration.
Conveyor Tracking
Evaluate picking and placing on moving conveyors with synchronized robot motion and tracking.
Robotic Screwdriving
Discuss repetitive screw fastening with tooling and positioning suited to your process.
Polishing & Deburring
Evaluate surface finishing and burr removal based on material, part geometry, and tooling.
AMR Integration
Explore robot arm integration with mobile platforms, considering model, power supply, and application needs.
MODEL SELECTION
Compare TM AI Cobot Models, Payload, and Reach
Choose a collaborative robot by comparing payload, reach, and repeatability across TM AI Cobot S Series and TM Series models. Include the weight of the gripper and workpiece when assessing the required payload.
_edited.png)
TM3S
Playload
Reach
3 KG
600 mm
TM5S
5 KG
946 mm
TM6S
6 KG
1800 mm
TM7S
7 KG
758 mm
TM12S
12 KG
1300 mm
_edited.png)
TM14S
Playload
Reach
14 KG
1100 mm
TM20S
20 KG
1300 mm
TM25S
30 KG
1920 mm
TM30S
35 KG
1702 mm
TM30SC
35 KG
1502 mm
TM TECHNOLOGY
TMflow: Visual Programming for TM AI Cobot
TMflow is Techman Robot’s software for creating and editing cobot tasks. Build robot movement, vision operations, and process logic through graphical function nodes in a flow-based interface.
If you prefer non-graphical programming, experience a more flexible way to program by using the new Script Node and Script Project. The Script feature allows experienced engineers to program with complex logic, and freely edit robot tasks by compiling codes.
INDUSTRY APPLICATIONS
TM Robot Applications Across Industries
Explore collaborative robot applications for different production environments. Suitability depends on the task, material, tooling, and integration requirements.
Automotive & Components
Part handling, assembly support, screwdriving, and component inspection.
Electronics & Semiconductors
Component positioning, pick and place, OCR, and visual inspection.
Food & Beverage
Packaged-product handling, label checks, and end-of-line palletizing.
Metalworking & Machining
Machine loading, part handling, polishing, and deburring with suitable tooling.
Logistics & Warehousing
Product sorting and palletizing with a cobot arm and appropriate system integration.
Consumer Goods & Packaging
Product transfer, packaging checks, and repetitive packing-line tasks.
TM Plug & Play
TM Robot Accessories
for Cobot Automation
TM Screen
Pair the optional TM Screen with the Robot Stick to support teaching, debugging, and control on compatible TM AI Cobot S Series configurations.
TM Plug & Play Grippers and Automation Tools
TM Plug&Play features a variety of products designed to work perfectly with the TM Robot. These ready-to-use tools simplify your setup, helping you speed up your automation with ease.
Screwdriver
Pick and Drive System PD400TM
Gripper Vacuum
HML Unit Dedicated for Techman Robots
Gripper Electric
Delto Gripper
-3F-B (DG-3F-B)
